Radiodetection CAT4+ cable avoidance tool

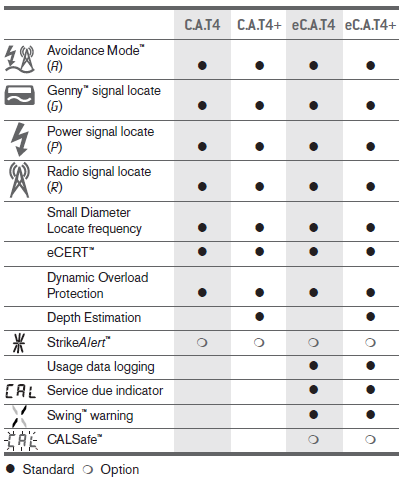

The next generation of Radiodetection CAT cable avoidance tools - CAT4, eCAT4, and eCAT4+ also available.

  • as the CAT4, but with depth estimation function
  • faster detection
  • C.A.T4 Avoidance Mode™ lets the operator check an intended excavation area for Power, Radio and Genny signals, and pinpoint located utilities in a single scan
  • bargraph ‘tidemark’ enables an operator to quickly spot a peak response and zero-in on a buried conductor
  • dig more safely with optional StrikeAlert™
  • unique digital signal processing capabilities reject electrical interference
  • Dynamic Overload Protection allows operators to continue working in electrically challenging areas, such as near substations and under power cables, where other locators’ detection circuitry may be overloaded and no longer function
  • control the sensitivity of each mode/signal, to pinpoint buried utilities in a single pass, Real Sound provides audio feedback derived directly from the utility located
  • eCert™ - using the CAT manager software allows you to perform a fast and thorough test of key circuitry elements, checking against the original factory calibration over the internet
  • high visibility display with backlight helps to minimise the possibility of misreading critical information from the unit, providing optimum visibility in all light conditions
  • CAT manager software is a Windows® PC program that allows plant, fleet and site managers to minimise down time by performing software upgrades, sending a service request, reproducing calibration certificates and compiling/editing user information
  • compatible with the CAT3 and Genny3 range of accessories

PDF


Earn 0 reward points
£0.00 £677.00

(ex. VAT)

StrikeAlert
